2026 Performance Upgrades

Up to 2.5x Longer Drum & Blade Production Life

We completely reimagined our mixer design from the ground up, resulting in a drum that lasts up to 2.5 times longer. By using stronger, more durable materials for the blades, we’ve extended their lifespan, and our redesigned shaft makes repairs much simpler, eliminating the need for complete rebuilds.

These design and material upgrades address the production and maintenance concerns of Ready Mix and RCC producers across the nation, and together, the all-new HM-10 enhancements deliver more control, less downtime, stronger materials, and easier maintenance, resulting in increased production and profits for you.

Blades

Performance Blades estimated to last up to 40% longer
High-Performance Blades, embedded with Tungsten, estimated to last up to 60% longer
Constructed with advanced, durable Chromium Carbide materials
Blade Thickness increases to 50mm from 38mm

Shaft

NEW 3-piece shaft design allows for easy disassembly for repairs or replacing worn parts
2 less mixer blade arms for less maintenance
Arms lined with Chromium Carbide in high-wear areas around the entire arm
Redesigned couplers and sleeves mean less hassle with replacement from production wear

Drum

NEW Chromium Carbide 12mm thickness liner material means longer life
Refurbishment package means you can swap out a drum in a weekend instead of a lengthy downtime with a full rebuild

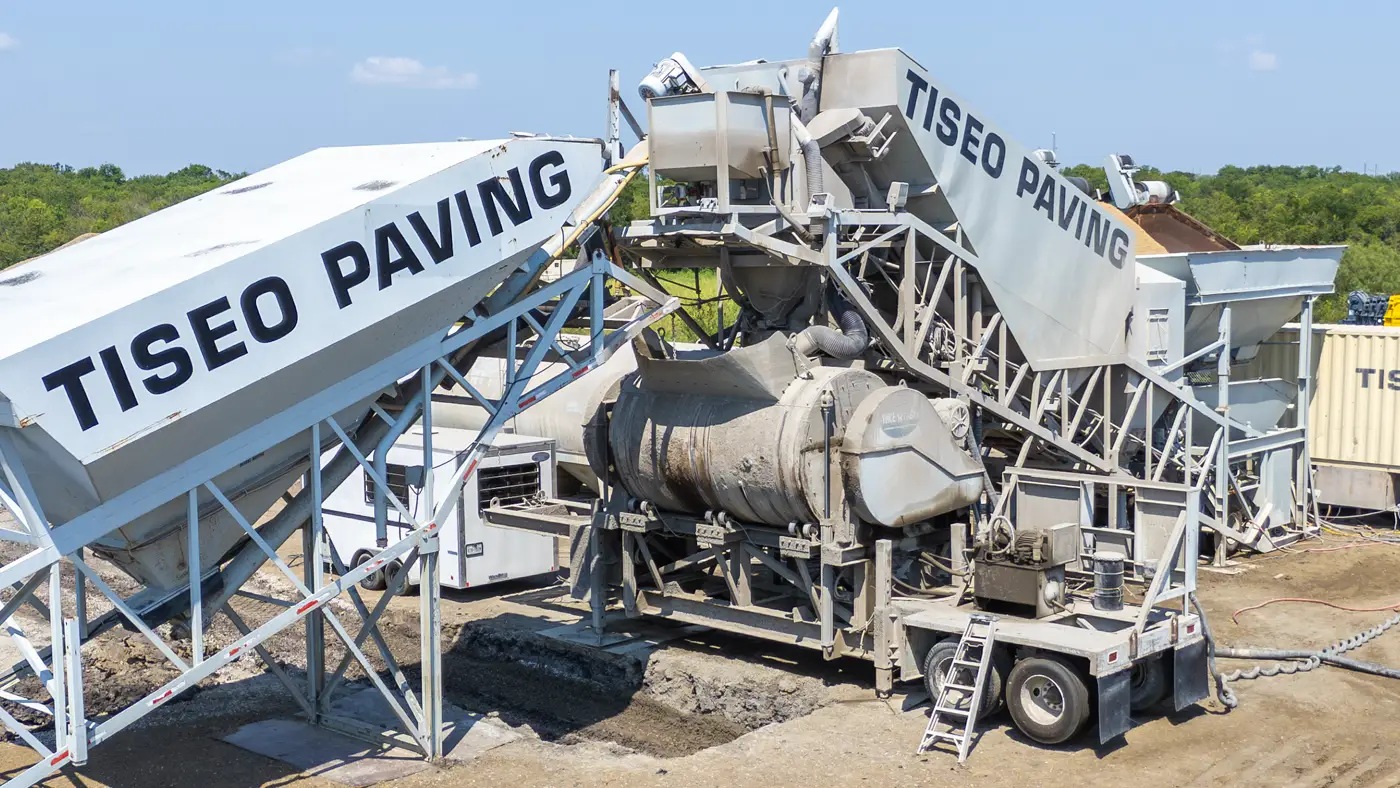

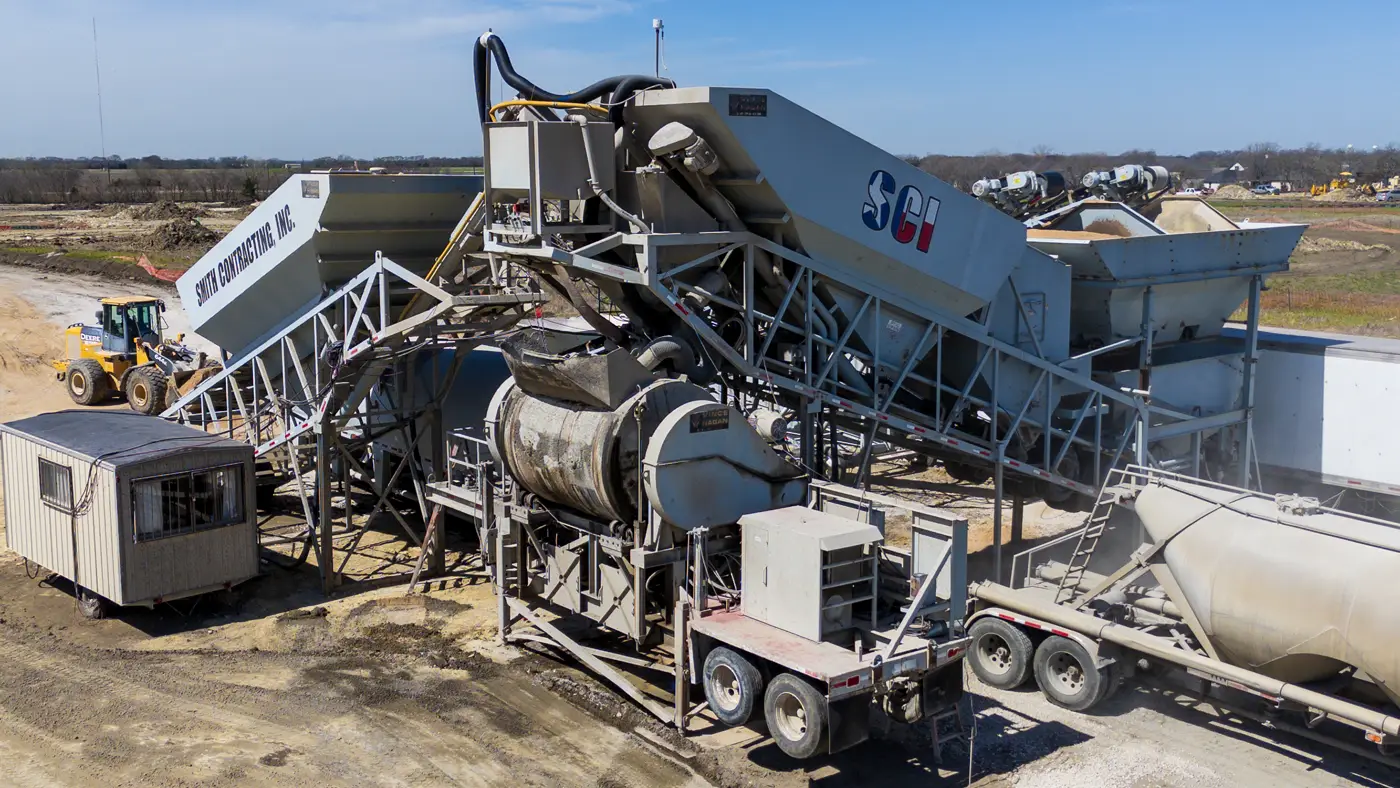

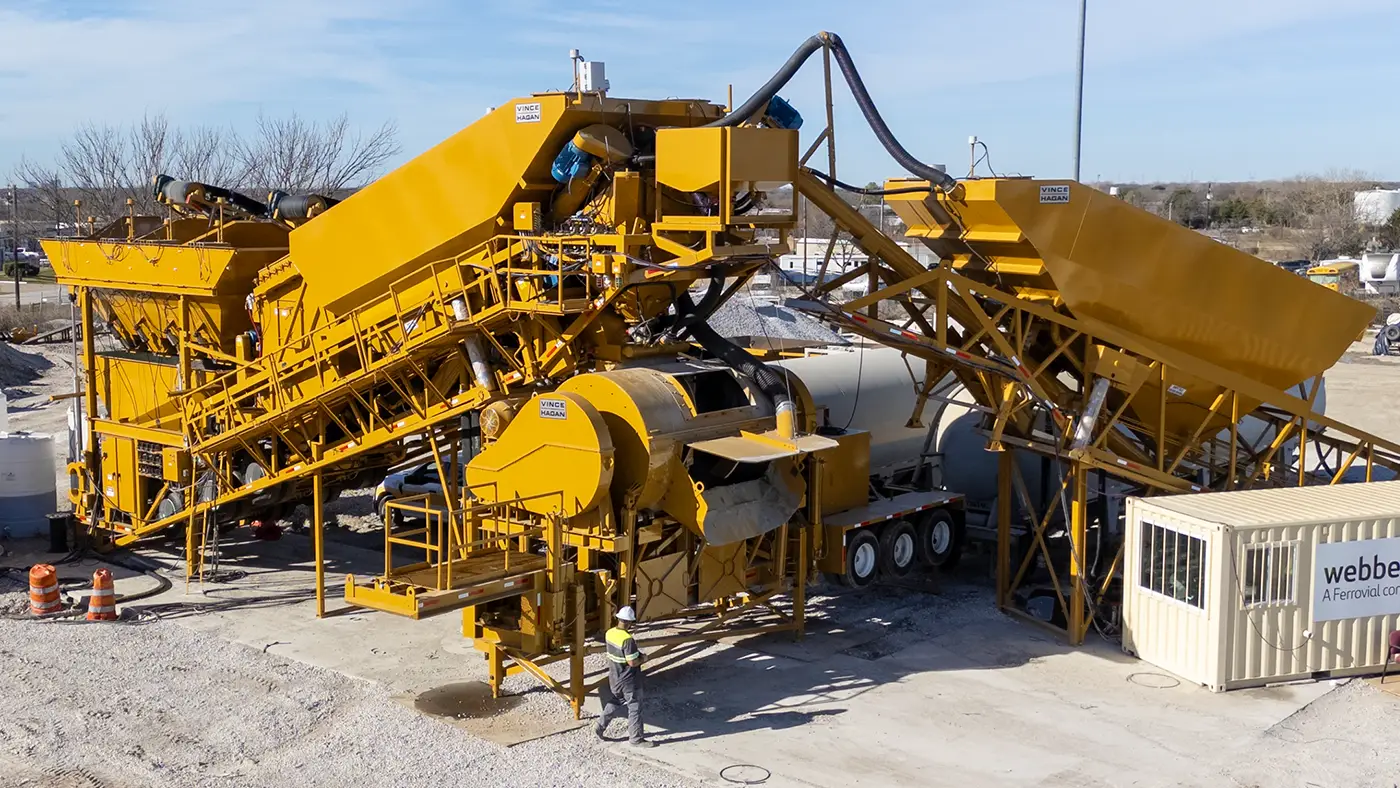

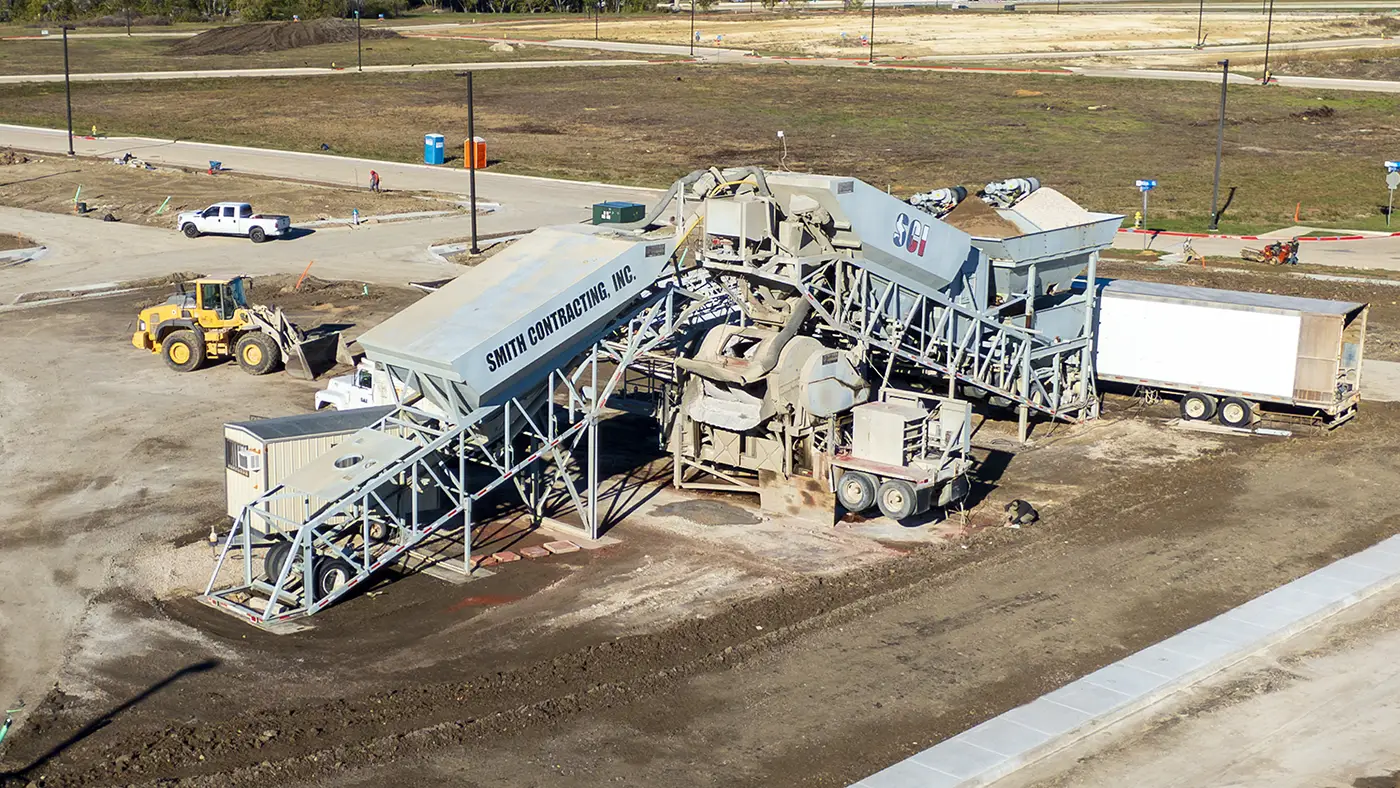

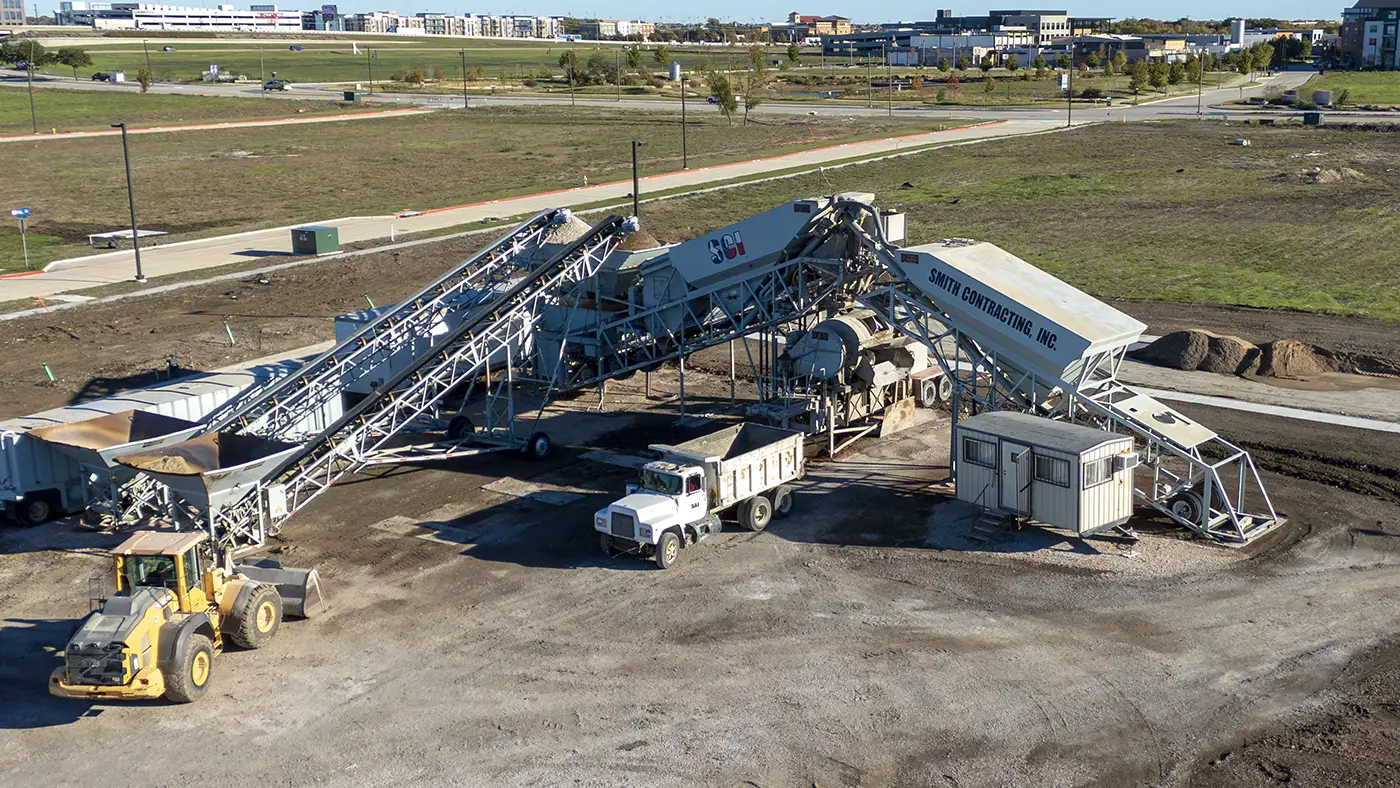

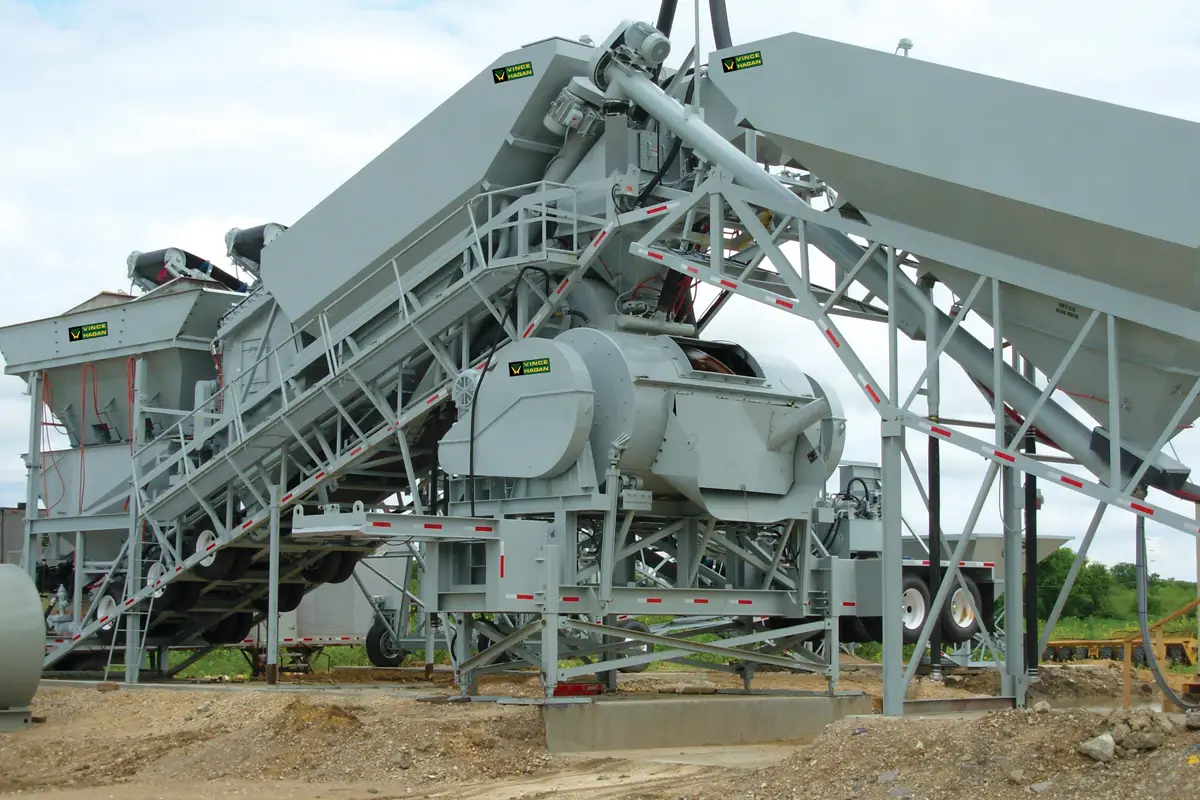

HM-10 Series

Horizontal Shaft/RCC Mixers

Vince Hagan fused mixer mobility and product consistency when we designed our patented Horizontal Shaft Spiral Blade Mixer. Fully trailerized, it moves easily and inexpensively. Plus, you can often forego the need for concrete slabs. This gives our mixer a minimum four or five day production jump on the relocation of a tilt mixer plant. On a fast-moving paving job, our mixer’s agility improves your bottom line!

Due to its quick cycle time, the Hagan Mixer produces up to 400 yards per hour with a 30-second mix time. A 20-second mix time has been approved for both 1”–3” slump pacing and 4”–6” slump general use concrete.

HM-10 Advantage

Hydraulic self Erect Available

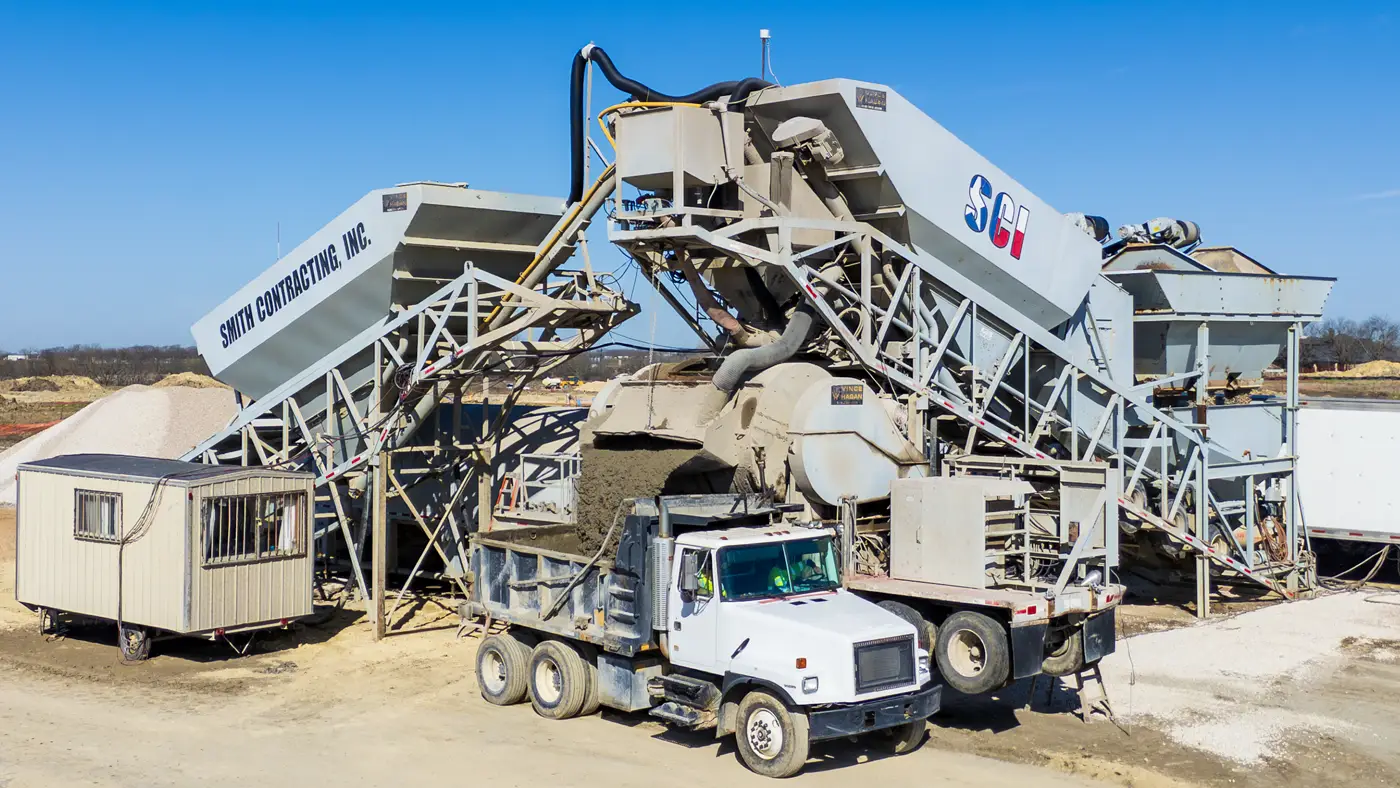

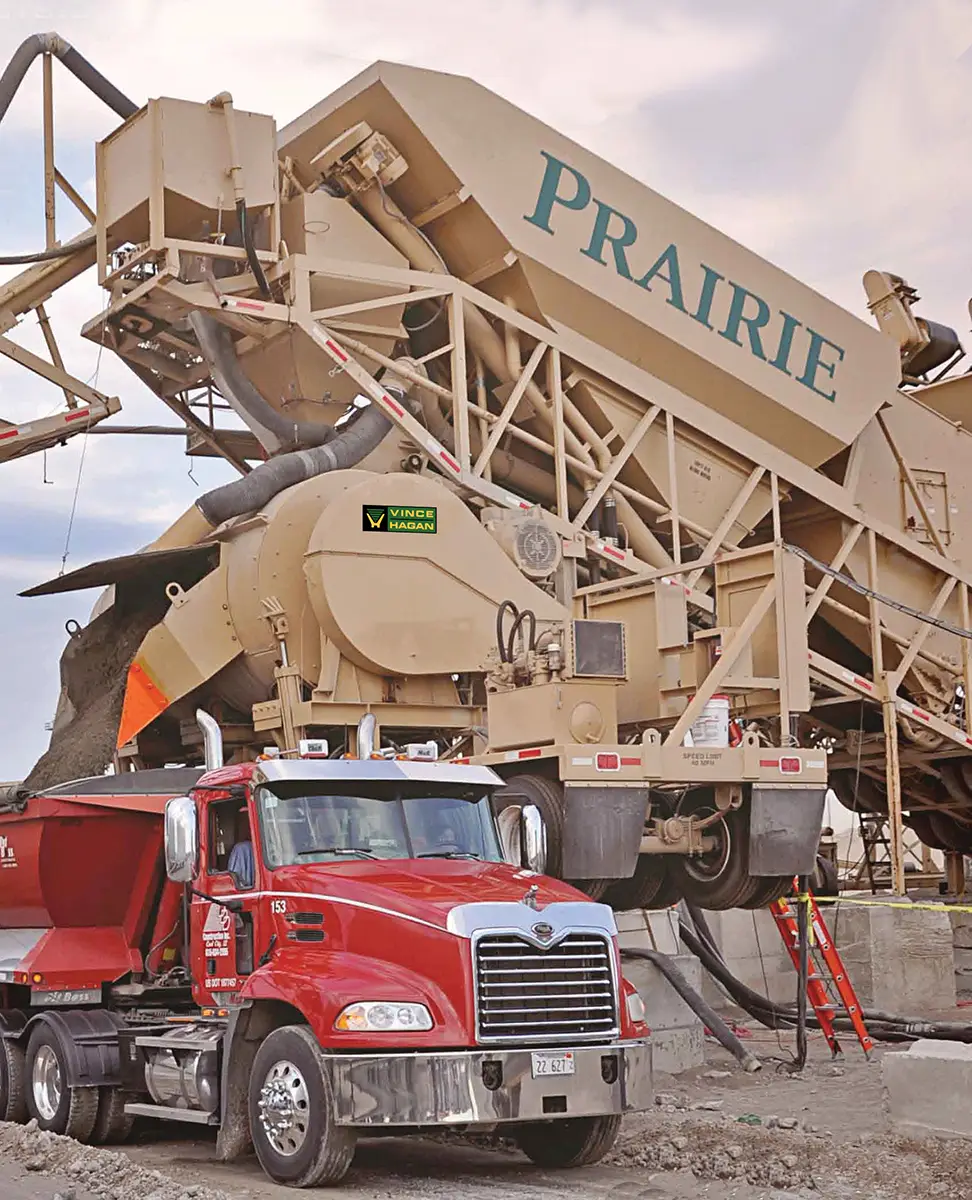

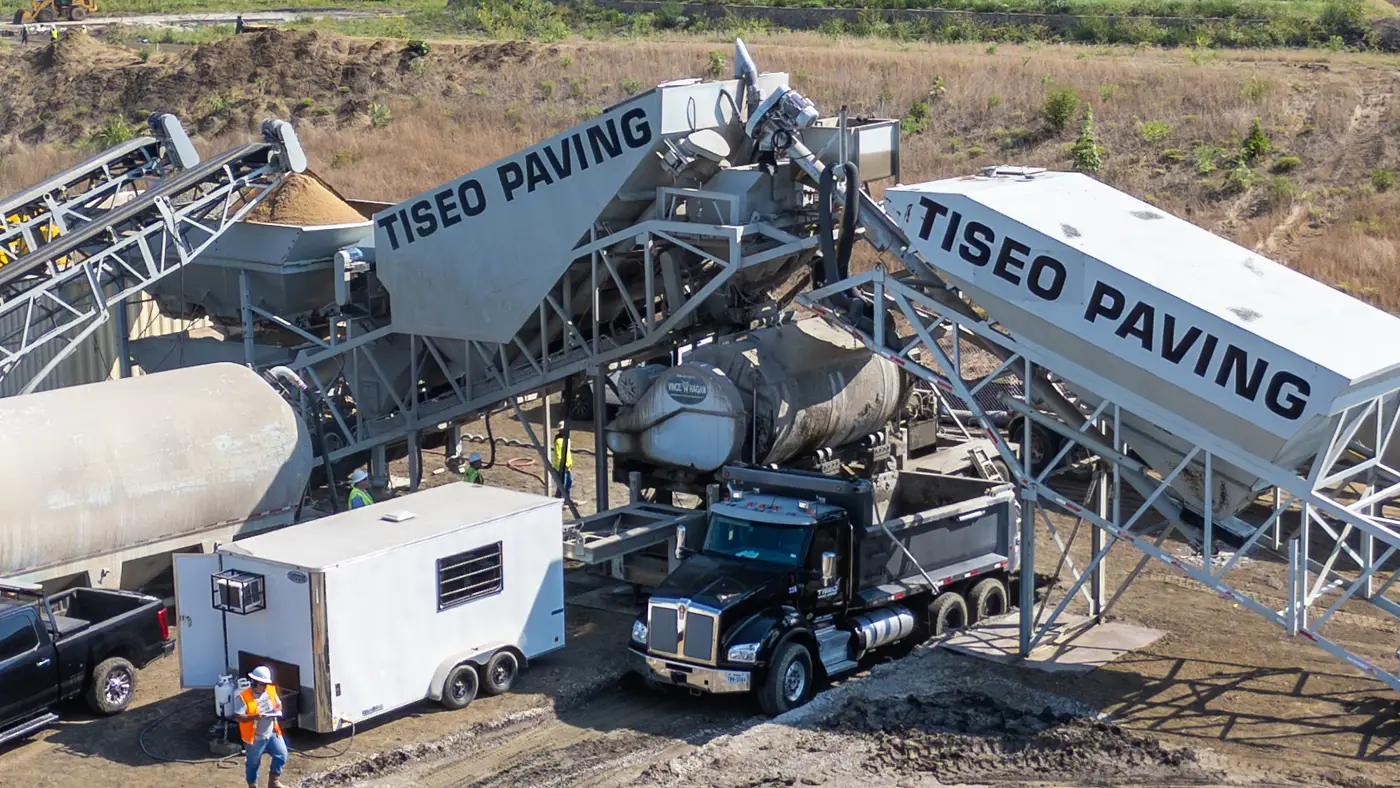

Special discharge chute for ready mix trucks, 40hp hydraulic system wet belt conveyor, and rcc upgrade available
Accepted by army corps of engineers & ALL MILITARY BRANCHES
10, 8, & 4.5 YD³ drum sizes available
21 Second discharge cycle
45 sec. mix time @ 1”-3” slump (Paving Use)
30 sec. mix time @ 4”-6” slump (General Use)
Twin 125 HP Drives
Significant reduction in foundation requirements
Auto lube system
